STAUFF Filtration Technology

Table of Contents

1. Custom Powder Coating for STAUFF Filters Type SF
2. STAUFF Series RF: Tank-Top Return-Line Filter Housings
3. Filtration Technology Resources

The SF series pressure filter housings can now be powder‑coated in any desired color, allowing us to better meet your functional and aesthetic requirements. Customers can choose from all RAL and NCS colors, as well as special shades created from supplied samples, with the option of either a coarse or fine structural finish. This new powder‑coating capability enhances customization, enabling faster, more cost‑effective, and durable coating while maintaining high quality and longevity.

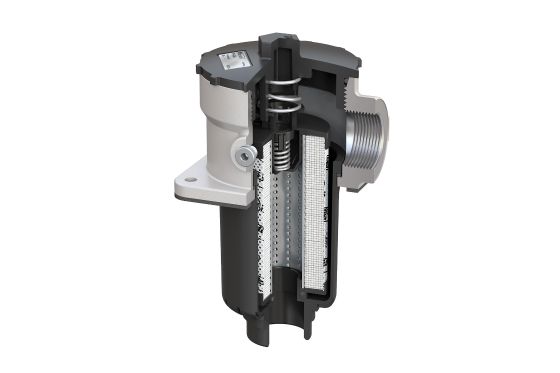

Tank-top return-line filter housings designed for maximum working pressures up to 16 bar / 232 PSI. Suitable for maximum flow rates up to 500 l/min / 130 US GPM. Made from Aluminum and glass-fiber reinforced Polyamide. Also available with accessories such as visual clogging indicators and electrical clogging switches as well as options including filter bowls with threaded outlets and leakage oil connections. Premium quality and performance. Light-weight design. Quick and easy installation. Quick and easy filter element replacement. Improved overall cost-efficiency.

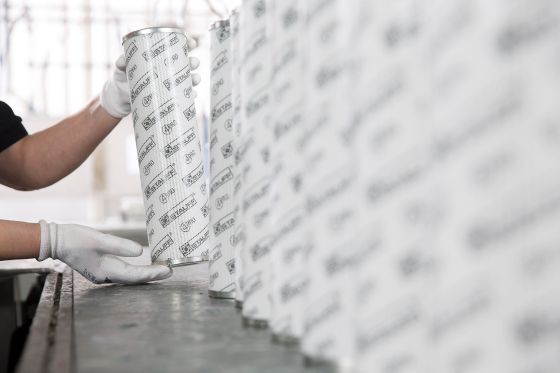

Filter Interchange

STAUFF’s online database at www.filterinterchange.com provides free, registration‑free access to more than 65,000 cross‑reference records for replacement filter elements used in hydraulic, lubrication, fuel, water, chemical, and coolant applications, offering alternatives that match or exceed the performance of original products. Users can quickly locate equivalent STAUFF elements by entering at least three consecutive characters of an original manufacturer’s code, then view additional details or download technical data sheets. The platform includes watch‑list functionality, the ability to request pricing and delivery information directly from the manufacturer, and ongoing database updates to ensure comprehensive, current coverage. Even when no direct match is found, users may submit an enquiry that will be handled by qualified staff, maintaining a seamless and reliable support experience.

Online Filter Calculator

The STAUFF Online Filter Calculator is a free, web-based tool that simplifies hydraulic filter selection by guiding users through system parameters such as flow rate, viscosity, pressure, filter grade, and media to determine the correct filter size with minimal pressure loss. By properly sizing filtration, users can extend equipment life, maintain fluid cleanliness, and prevent costly downtime. The tool walks users step‑by‑step through selecting filter types, valves, media, and operating conditions, then provides a list of suitable filter options with technical data for easy comparison. After finalizing details such as sealing materials, connections, and indicators, users receive a complete technical overview, including dimensions and drawings, and can send an inquiry to STAUFF directly, all without registration.
